Illusion: The World’s Lightest Full-Suspension Scooter with Flexible Range

The ONE REHAB Illusion Mobility Scooter is a revolutionary product, combining ultra-lightweight portability with the superior ride comfort usually reserved for larger scooters. Built with an aircraft-grade aluminium chassis, the Illusion is designed to restore true independence and effortlessly simplify travel. Its unique take-apart design and choice of three lithium batteries mean you can tailor your scooter’s range to your exact lifestyle, starting with a dependable 10 mile range on the standard model.

Unbeatable Portability and Handling

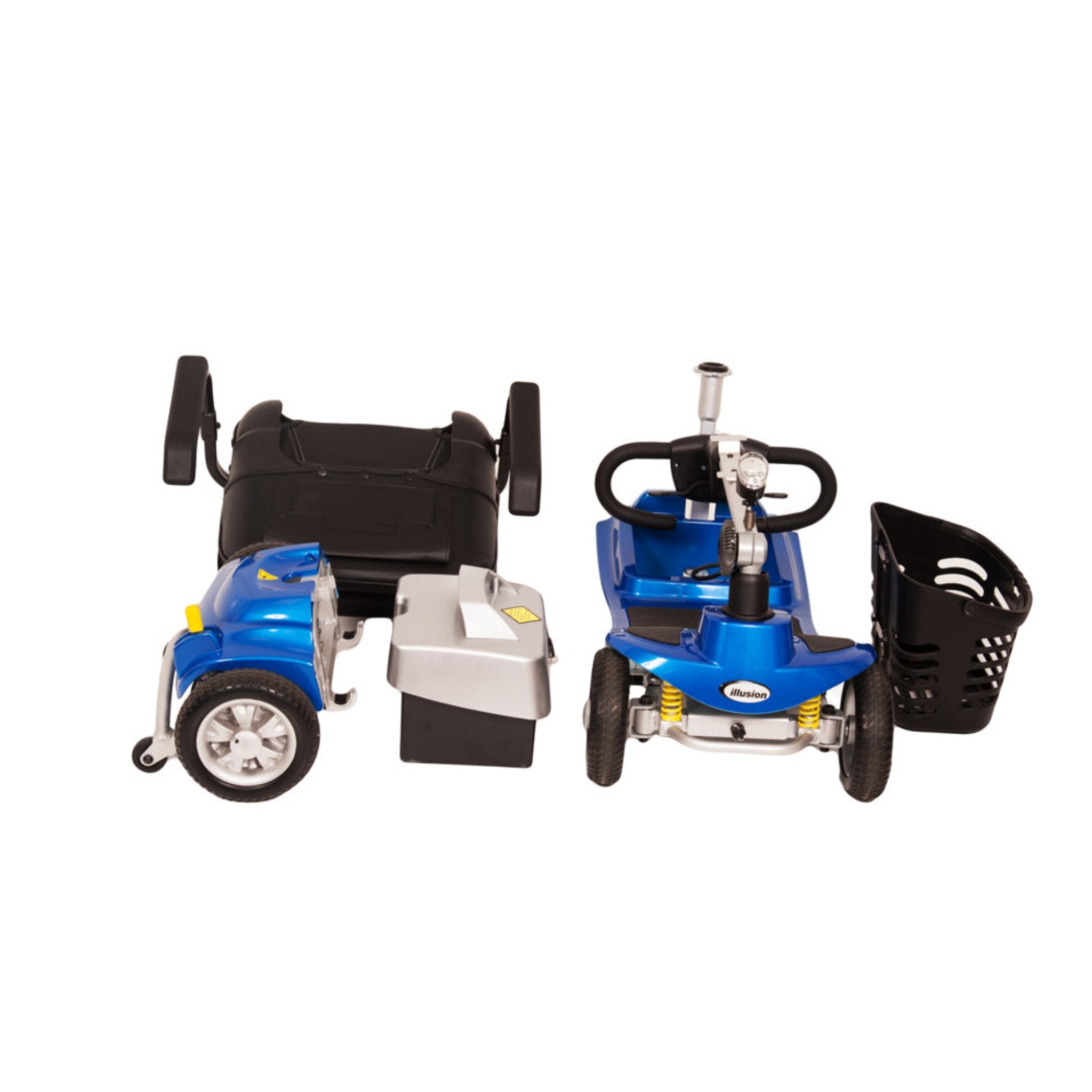

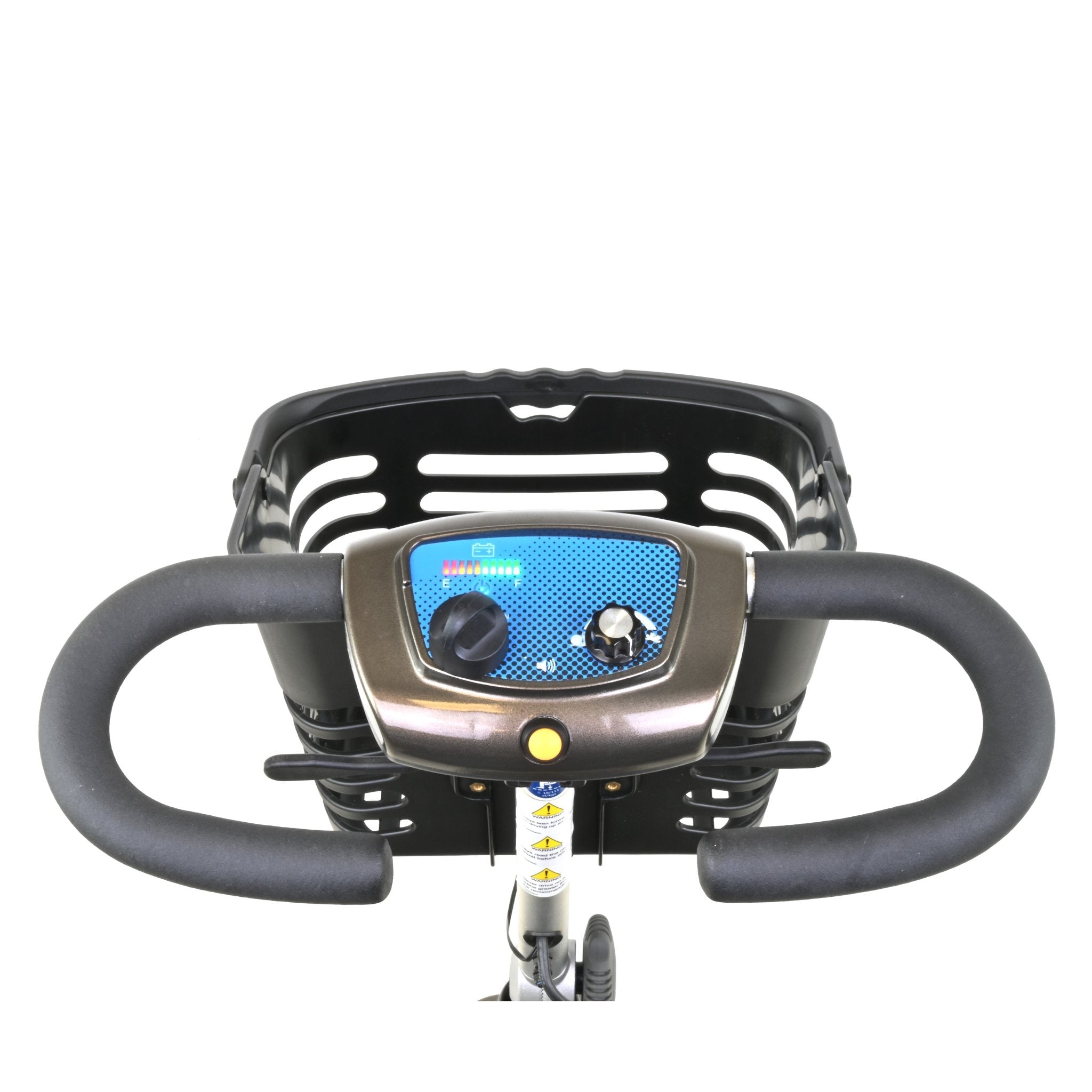

The Illusion is built for effortless lifting. It quickly disassembles into individual pieces in under 30 seconds, without requiring any tools. The advantage of the 9.9 kg heaviest section is transformative: it is easily manageable for most users to lift, eliminating back strain and simplifying transport. Combined with the easy-grip delta handlebar, the scooter gives you full control and confidence when manoeuvring in tight spaces.

Ultimate Comfort with Full Suspension

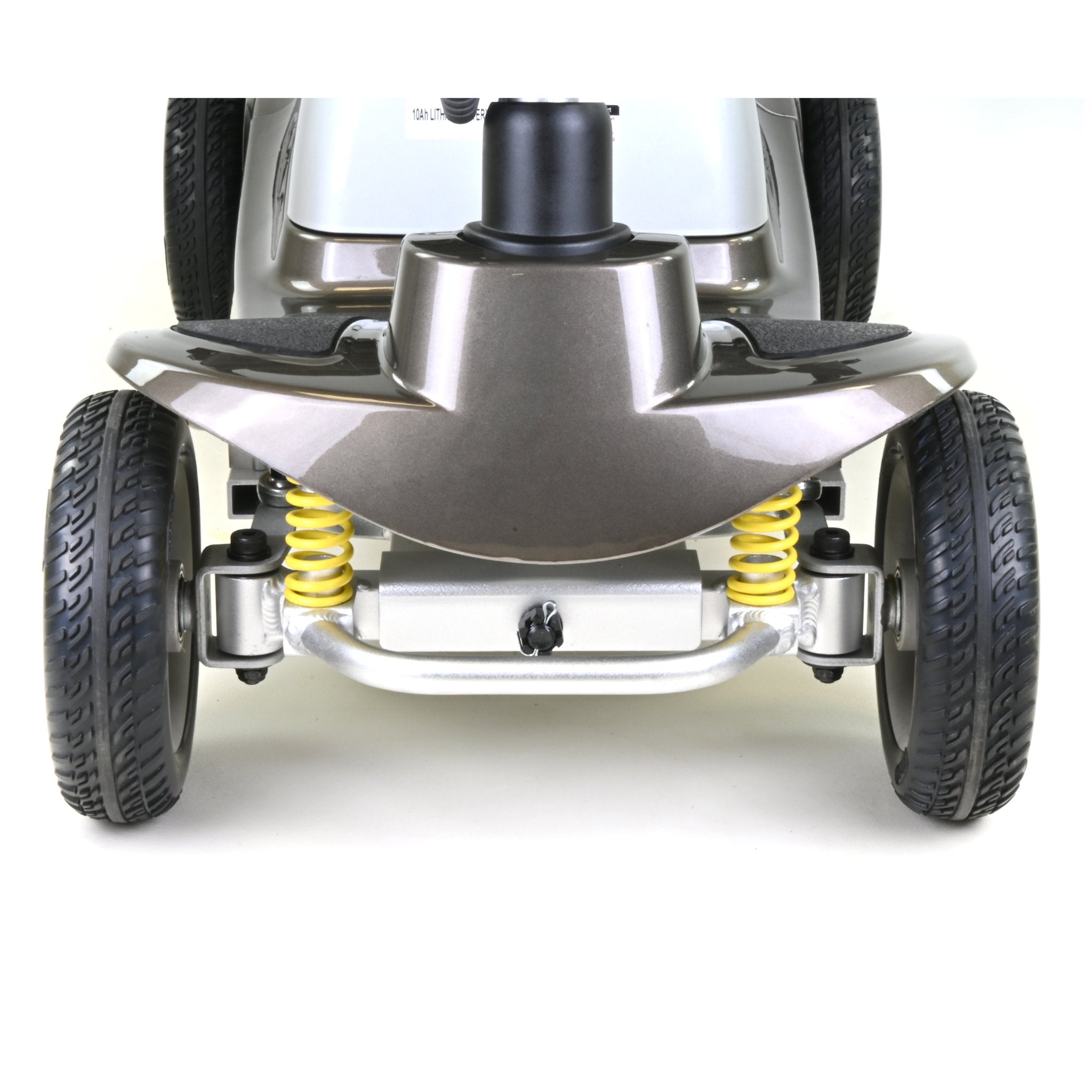

Forget the bumpy ride of standard travel scooters. The Illusion features advanced engineered adjustable front and rear suspension that works with its durable, puncture-proof tyres to deliver a fantastically enjoyable driving experience over varied terrains. The comfortable and spacious deep foam covered seat and the shallow floor plate—which provides exceptional legroom even for taller users—further enhance all-day comfort.

Flexible Power: Choose Your Freedom

The Illusion offers unmatched battery versatility, allowing you to choose the lithium pack that suits your journey. The standard model is ready for air travel (240 Wh), while our upgraded packs offer extended freedom:

• Illusion Standard (10 Ah): 10 miles (16 km) range—ideal for daily trips and Air Travel Safe use.
• Illusion Endurance (21 Ah): Upgrade to 20 miles (32 km) range—perfect for long days out.
• Illusion Epic (34 Ah): Upgrade to 30 miles (48 km) range—maximum freedom for extended touring.

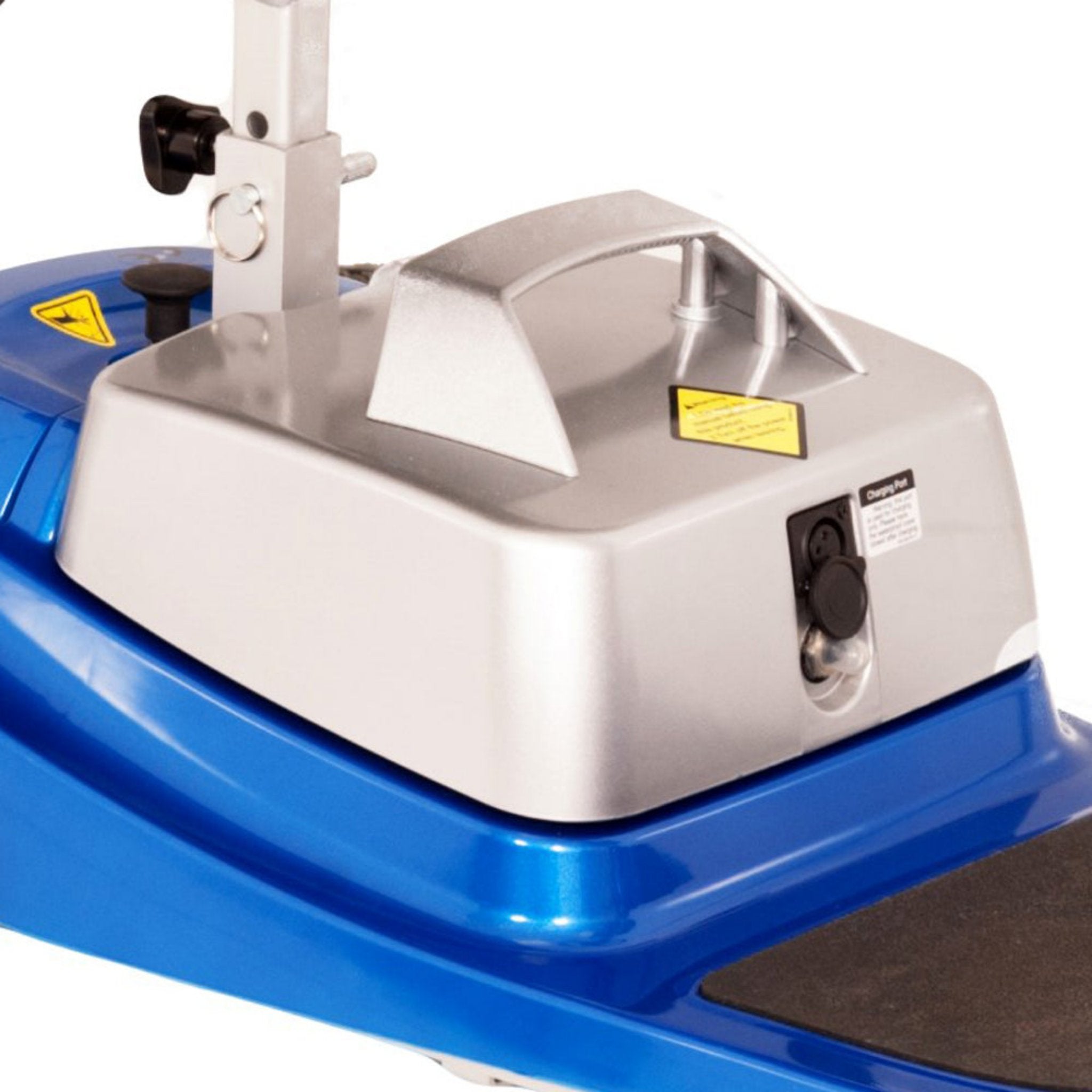

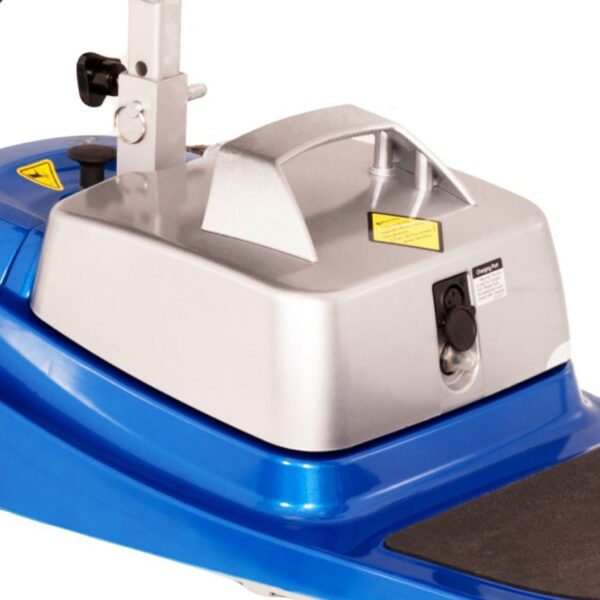

All batteries are easily removable for convenient off-board charging, and a second charging port is located in the tiller for easy access when the scooter is assembled.

Key Features

• Market-Leading Weight: Heaviest disassembled part is only 9.9 kg.
• Full Suspension: Advanced adjustable front and rear suspension for exceptional comfort.
• Aircraft-Grade Aluminium: Ultra-lightweight and durable chassis construction.
• Triple Range Choice: Available with Standard, Endurance, and Epic battery packs (Up to 30 miles).
• Air Travel Option: The Standard 10Ah battery pack is suitable for air travel.

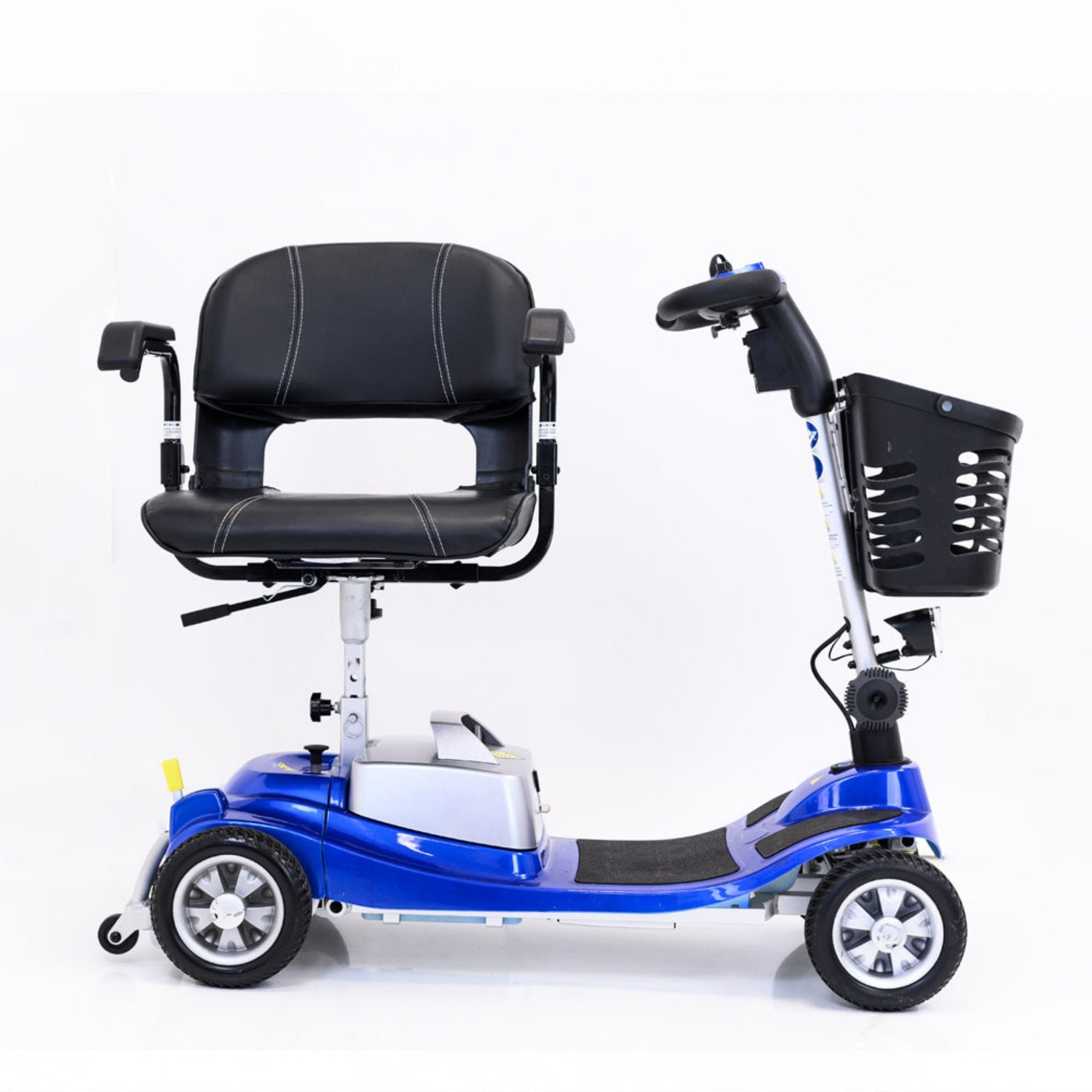

• Superior Legroom: Shallow floor plate design provides comfort for taller users.
• Dual Charging: Off-board charging via battery box or on-board via tiller port.
• Comfort Seat: Features a comfortable, spacious, deep foam covered seat.

Specifications

• Brand: One Rehab
• Model Options: Illusion (Standard), Illusion Endurance, Illusion Epic

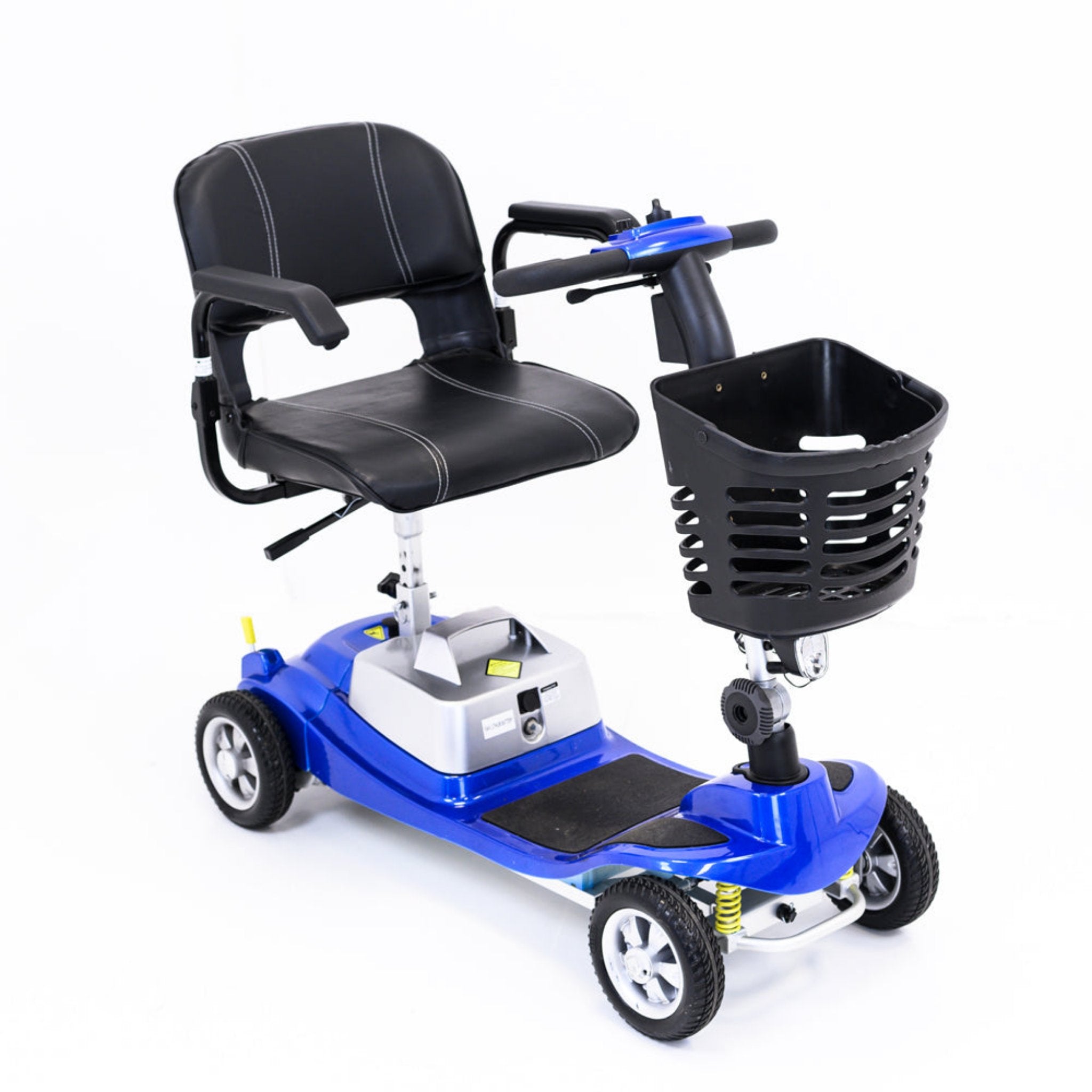

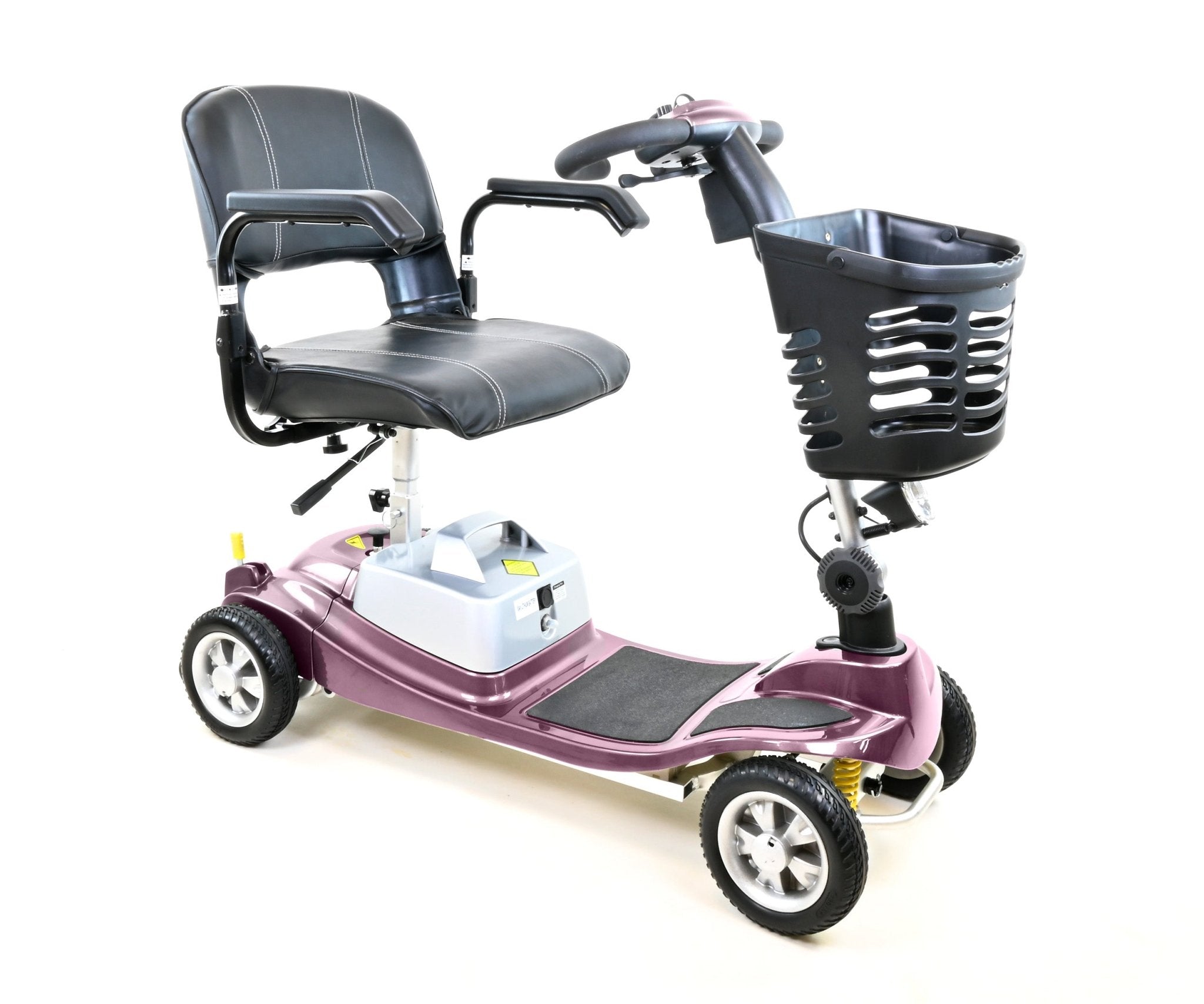

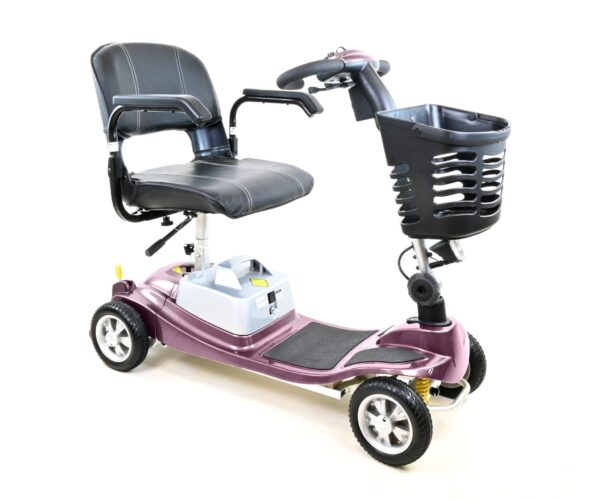

• Colour Options: Capri Blue, Oyster Grey, Midnight Purple
• Performance (Max):
  • Top Speed: 4 mph
  • User Weight (Max): 115 kg (18 stone)
  • Climbing Gradient (Max): 8°
• Weights & Portability:
  • Heaviest Part when Disassembled: 9.9 kg
  • Total Weight (with Standard 10Ah Battery): 31 kg
  • Total Weight (without batteries): 28 kg
• Battery & Motor:
  • Motor: 120W
  • Standard Battery (Illusion): 10Ah 240Wh Lithium (Range: 10 miles, Weight: 3 kg)
  • Endurance Battery (Illusion Endurance): 21Ah 504Wh Lithium (Range: 20 miles, Weight: 4.5 kg)
  • Epic Battery (Illusion Epic): 34Ah 816Wh Lithium (Range: 30 miles, Weight: 6 kg)
  • Charger: 2 Amp Lithium
• Dimensions & Design:
  • Overall Length: 1035 mm (41 inches)
  • Overall Width: 490 mm (19 inches)
  • Overall Height: 920 mm (36 inches)
  • Folded Height (tiller down/seat off): 450 mm (18 inches)
  • Ground Clearance (Mid Frame): 55 mm (2 inches)
  • Tyres: Puncture Proof, 194 mm (7.5 inches)
  • Suspension: Adjustable Front & Rear
  • Turning Radius (Min): 1370 mm (54 inches)
