Description

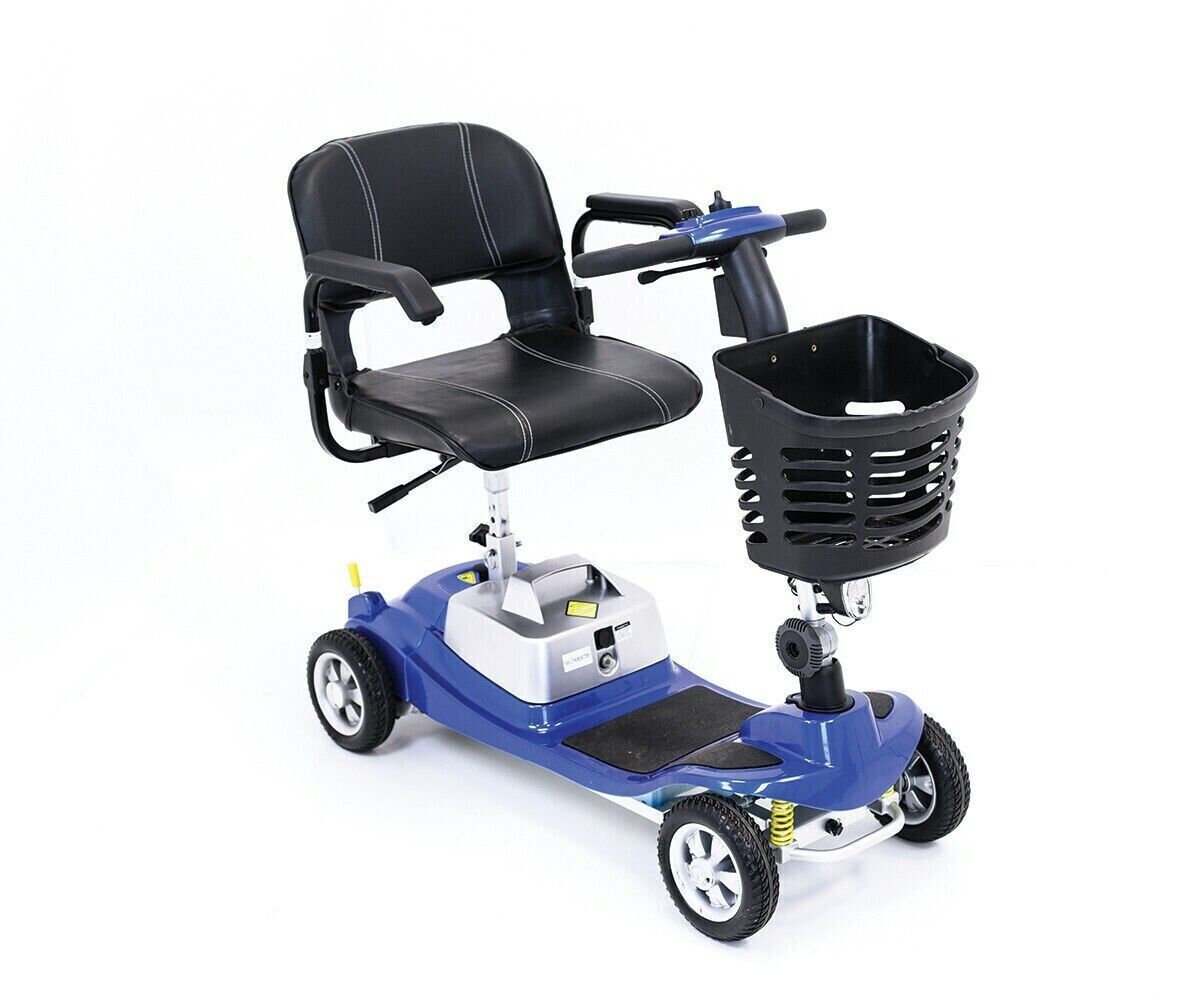

ONE REHAB Illusion Mobility Scooter
Colour
Illusion Mobility Scooter – Capri Blue
Illusion Mobility Scooter – Oyster Grey
Illusion Mobility Scooter – Midnight Purple

Key Features:

Complete chassis made from ultra-lightweight aircraft-grade aluminium

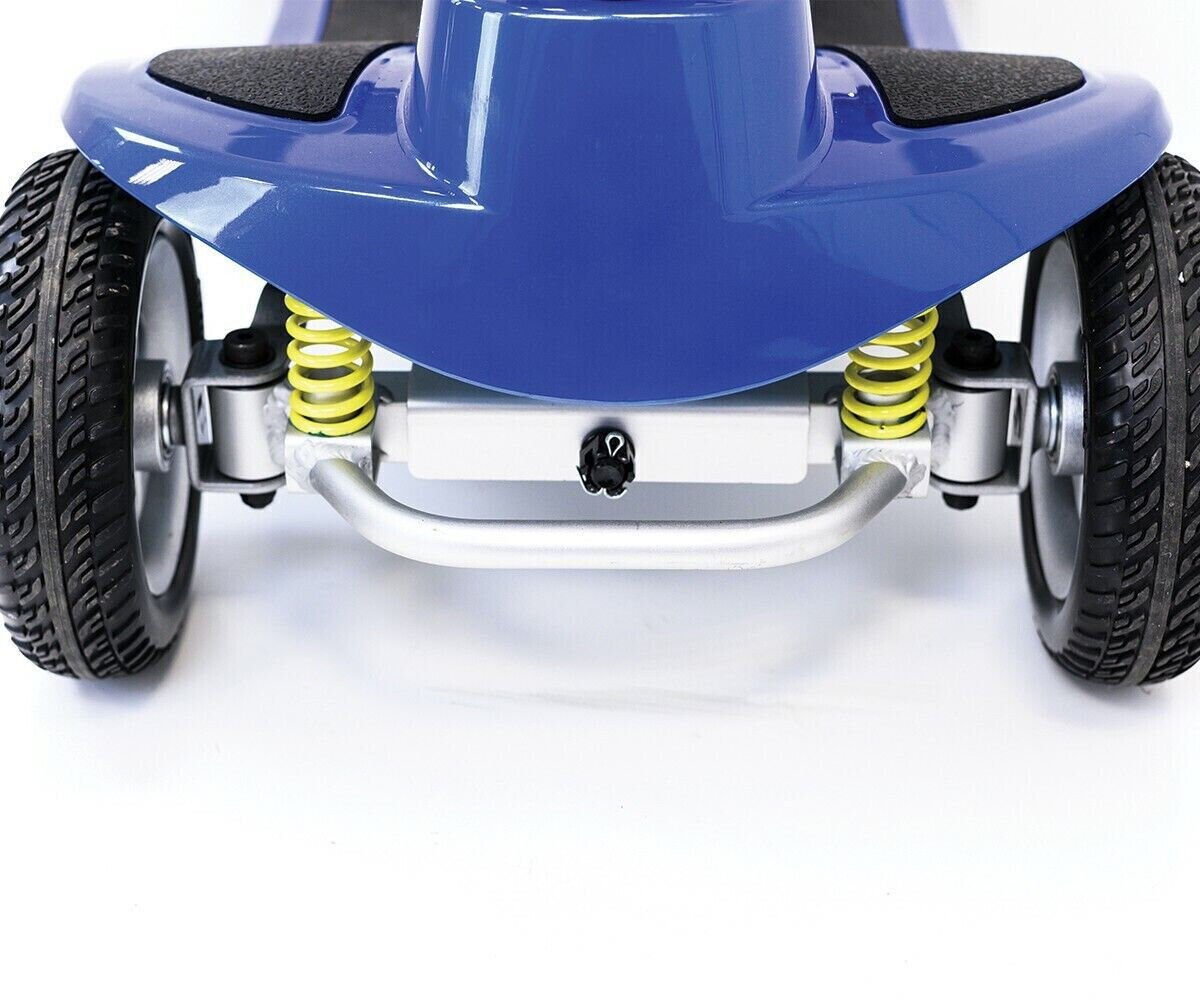

All-round suspension giving exceptional comfort
Designed for lifting in and out of the car boot with ease
Very light lithium battery pack available in three sizes

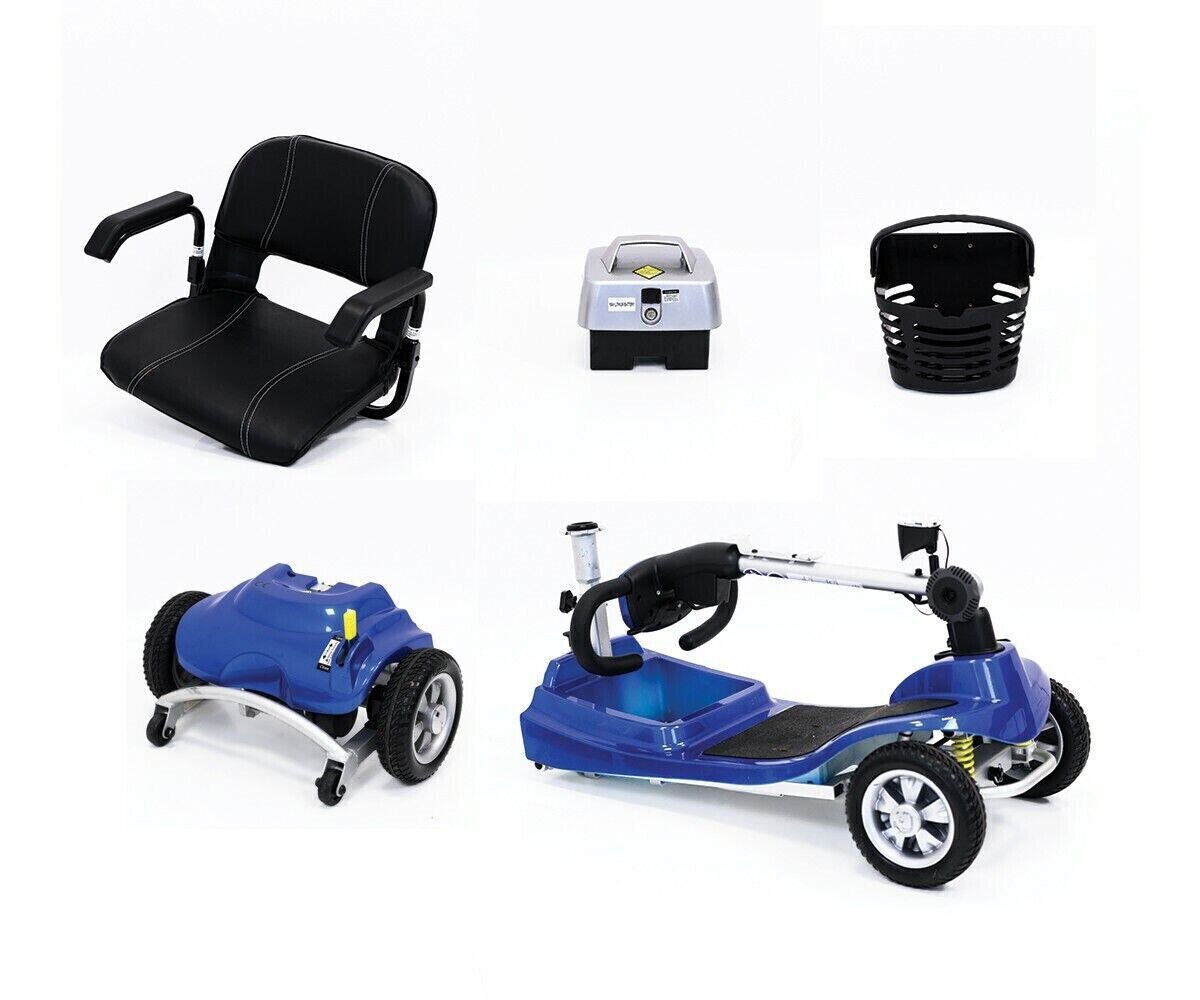

Easy to take apart and reassemble in seconds
Shallow floor plate offers great leg room even for the taller user
Off-board via battery box allows you to keep the scooter in house and charge the battery pack in doors
Easy grip delta handlebar gives you full control when manoeuvring
Comfortable and spacious deep foam covered seat
Great range of colour options for next day delivery

Description:

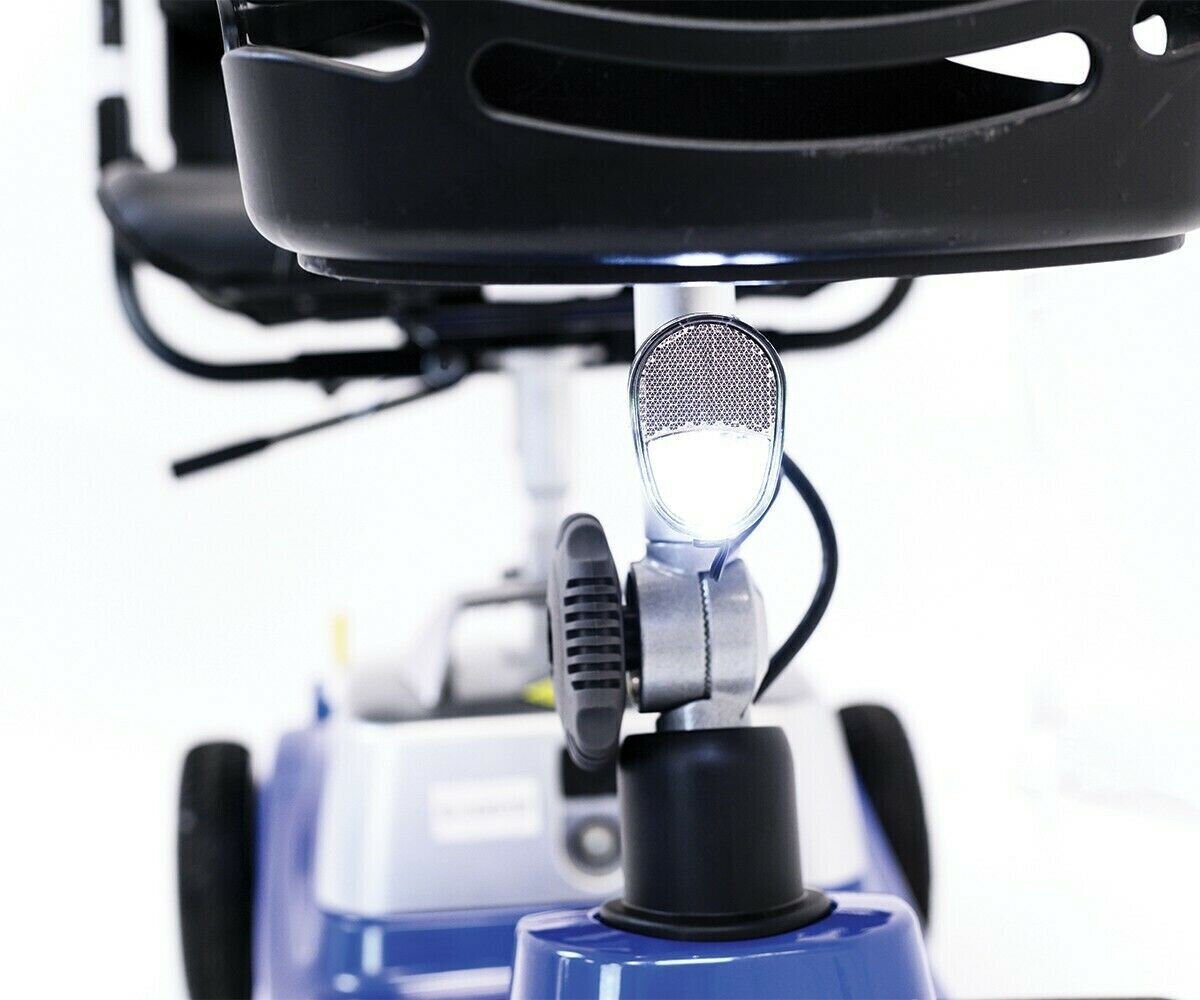

The Illusion is a revolutionary lightweight but strong scooter which can be disassembled into parts for easy lifting, the heaviest part weighing less than 10kg (similar to a bag of shopping) The complete chassis is manufactured from ultra-lightweight aircraft-grade aluminium for optimum durability ensuring top quality. Taking around 30 seconds to reassemble it ensures you won’t be wasting any of your valuable time. It also features an ultra-lightweight lithium battery that is both accessible and simple to remove so you can easily move it to a preferred charging location. A second charging port is located in the tiller which allows for easy access when disassembling is not needed. The scooter also has a powerful LED light for lower light driving conditions. The tiller is height adjustable and the shallow floor plate helps provide exceptional legroom even for the taller users. Furthermore, Illusion is also available with three Lithium sizes, a standard, an endurance and epic battery pack allowing you to double or triple your travel distance for those longer journeys. Not only super light, the unique shrouding is of contemporary design. The advanced engineered full front and rear suspension complete with the comfortable and spacious deep foam covered seat gives a fantastically enjoyable driving experience. Together with the secure-grip delta handlebar, which gives you full control over manoeuvring the scooter, it is incredibly easy to use.

Specifications:
Model Illusion Illusion Endurance Illusion Epic
Speed (max) 4mph 4mph 4mph
Battery Type Lithium Lithium Lithium
Battery Size 10Ah 240Wh Lithium 21Ah 504Wh Lithium 34Ah 816Wh Lithium
Battery Weight 3 kg 4.5 kg 6 kg
User weight (Max) 18 st. (115 kg) 18 st. (115 kg) 18 st. (115 kg)
Heaviest part when disassembled 9.9kg 9.9kg 9.9kg
Total Weight (without batteries, arms or basket) 25.5 kg 25.5 kg 25.5 kg
Total Weight (without batteries) 28 kg 28 kg 28 kg
Total Weight (with standard batteries, without arms or basket) 25.5 kg 25.5 kg 25.5 kg
Total Weight (with standard batteries) 31 kg 31 kg 31 kg
Overall Length 1035 mm (41 in.) 1035 mm (41 in.) 1035 mm (41 in.)
Overall Width 490 mm (19 in.) 490 mm (19 in.) 490 mm (19 in.)
Overall Height 920 mm (36 in.) 920 mm (36 in.) 920 mm (36 in.)
Folded Height (tiller down/seat off) 450 mm (18 in.) 450 mm (18 in.) 450 mm (18 in.)
Tyres 194 mm (7.5 in.) 194 mm (7.5 in.) 194 mm (7.5 in.)
Tyre Type Puncture Proof Puncture Proof Puncture Proof
Suspension Adjustable Front & Rear Adjustable Front & Rear Adjustable Front & Rear
Lights Front LED Front LED Front LED
Charger 2 Amp Lithium 2 Amp Lithium 2 Amp Lithium
Charging Type Off-board via Battery Box/Tiller Charger Off-board via Battery Box/Tiller Charger Off-board via Battery Box/Tiller Charger
Climbing Gradient (Max) 8° 8° 8°
Ground Clearance (Mid Frame) 55 mm (2 in.) 55 mm (2 in.) 55 mm (2 in.)
Turning Radius (Min) 1370 mm (54 in.) 1370 mm (54 in.) 1370 mm (54 in.)
Seat Deluxe Adjustable Deluxe Adjustable Deluxe Adjustable
Seat Width 460 mm (18 in.) 460 mm (18 in.) 460 mm (18 in.)
Seat Height 400-480 mm 400-480 mm 400-480 mm
Wheel Colour Silver Silver Silver
Basket Black Plastic Black Plastic Black Plastic
Tiller Lock Yes Yes Yes
Tiller Type Delta Delta Delta
Brake Electric Electric Electric
Frame Type Detachable Detachable Detachable
Warranty 12 months 12 months 12 months
Controller PG S-Drive 45 Amp PG S-Drive 45 Amp PG S-Drive 45 Amp
Motor 120W 120W 120W
Overall Box Size 500Hx520Wx1060L 500Hx520Wx1060L 500Hx520Wx1060L
